Optional vessels
l Cell culture vessel
l Microbial culture vessel
l Plant cell culture vessel
perfusion bioreactor

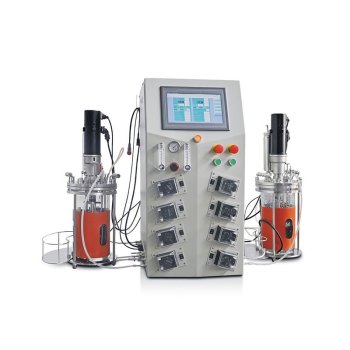

Controller
l Two glass vessels can be controlled separately at the same time.
l 10″ touch screen, easy to understand and use.
l Controller combines measurement and control hardware for excellent process control.
l Standard with 4×2 peristaltic pumps, the functions of each peristaltic pump can be switched, and external pumps can be configured.
l With external chiller for optional, you don't have to worry about finding a suitable cooling water source for your bioreactor.
Control System
l With mature, stable, universal Siemens PLC control system to realize automatic control.
l With the functions of real-time display, data recording, data analysis, output printing, password management, abnormal analysis, overlimit alarm, etc.
l With USB interface, and data can be copied directly by USB.
l Running modes:
Manual control: You can open valve or set the percentage of valve opening.
Automatic control: You can select continuous or PID control the switch.
Sequence control: The control of all parameters can be pre-set at least 10 control sections.
Automatic segmentation remotely control: PC control.
Related control: Rotating speed & dissolved oxygen, gasing & dissolved oxygen, feeding & pH, etc.
