Bioreactor Batch Fermentation Bioreactor For Microbiology parallel bioreactor

group name: Fermentor Cell Culture Bioreator Laboratory Fermenter Bioreactor Fermentation Bioreactor

Min Order: 1 piece

brand name: BAILUN bio Bioreactor and Fermenter Manufacturer

model: BLBIO-GCL

Nearest port for product export: Shanghai, Tianjin

Delivery clauses under the trade mode: FOB, CFR, CIF

Acceptable payment methods: T/T, L/C

update time: Thu, 05 Dec 2024 03:28:10 GMT

contact supplier

Paramtents

Brand Name Bailun
Voltage 220/380Volt 50/60 Hz
Power 0.75KW-75KW

Packging & Delivery

Min Order1 piece

Briefing

Suitable for culture of microbes with low shear force

Detailed

Basic Information

Technical Details

Product Description

Suitable for culture of microbes with low shear force

lnternal or external light sources with adjustable intensity can be provided. The culture of marine organisms, especially the cells and tissues of microalgae and macroalgae, is a research focus all overthe world. Among them, some secondary metabolites such as marine terpenoids are widely studied secondary metabolites.Bailun has nearly 20 years of research experience in the lighting culture and photoreaction field.The lighting bioreactor is aresult of these research experiences.

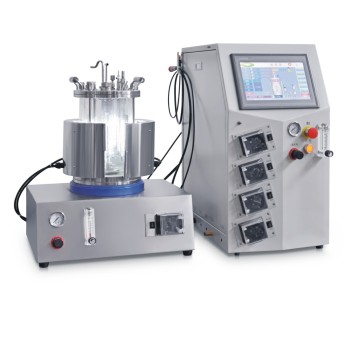

The lighting bioreactor in the BLBlO-GCL series is suitable for culture of algae cells and tissues. It adopts a long and narrowtank with a total volume of 3.6L and tank cover specification of 115NW. lt is provided with specially designed low positioncooling jacket and outer casing type light source to ensure the transmission effect of lighting. It has various types of mixingpaddles for selection such as flat paddle, bevel paddle and turbine paddle,The light intensity can be adjusted freelyaccording to the percentage.When working with the BLBlO-/3.1 software, it can simulate various lighting modes, such asday and night alternation.

Control system: 10in touch screen , Siemens PLC control system with control parameters (stirring, pH, DO, temperature, feeding, gas etc.),

data analysis, data logging, data output and printing, overrun alarm, language switching and other functions

parallel bioreactor

Total volume	0.2L~40L
Working volume	50%~70%
Stirring system	Magnetic drive or Mechanical drive, 2 height a djustable six – blade stirrer
Sterilization	Off-site sterilization(Autoclave)
Gas control	Manual control by rotor meter (standard) Auto control by mass flow meter( optional)
Feeding	4 fixed peristaltic pump( standard) Variable speed peristaltic pump(optional)
Illumination system	LED light (white, blue, green, red) with adjustable intensity available (intensity 0 until 50micromol-m. seg2) and photoperiod
Basic sensor	Stanaded with pH, DO, Temperature, Foam Optional: Liquid Level sensor, OD sensor, Turbidity sensor, ORP sensor, Weight system, Live cell sensor etc.
