fermenter Bioreactor Batch Fermentation Bioreactor For Microbiology 2000 liter bioreactor

Application

1, Animal vaccine production: Avian influenza vaccine, Porcine PRRS vaccine, Foot-and-mouth disease, Rabies vaccine, Mink vaccine, DTP vaccine, Diphtheria vaccine, Tetanus vaccine, etc.

2, Human vaccine production: Diphtheria vaccine, Tetanus vaccine, Meningitis vaccine, Pneumonia IV vaccine, Hepatitis B vaccine, etc.

3, Culture for microorganism (bacterial,fungi,yeast.etc), mammalian cell(293,CHO etc.), plant cell, algae, enzyme, protein, additives, antibiotics etc.

2000 liter bioreactor

Product Description

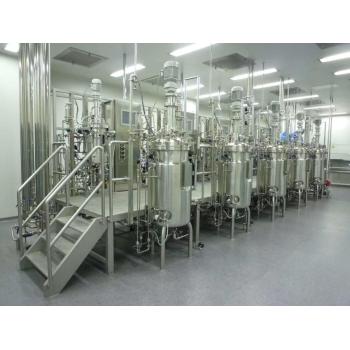

Fully sealed, zero leakage, no pollution, and maintenance-free. The double-end mechanical seal completely solves the problem of bacterial contamination in biological product tanks. Various parameters during fermentation such as pH, DO, temperature and rotational speed can be monitored through the controller, and all data and control parameters can be transmitted to the controller or computer. Compact structure, various components can be integrated on the fermentation system. You can choose to use the direct coupling mechanical stirring method driven by the upper part or the magnetic indirect coupling mechanical stirring method driven by the lower part. The structure is simple and the operation is stable. Polishing precision Ra≤0.4

German Siemens S7-200 series PLC control system + 10” LCD touch screen display operation, on-site direct operation (menu type), full English menu and interface; sampling and display of tank data, browsing and analysis of system data, and reading settings. Available Control the stirring speed, the temperature of the medium in the tank, Ph value, DO value
