Stainless Steel For Microorganism Cultivation hyperforma bioreactor

group name: Mammalian Cell Bioreactor 200l Bioreactor Stainless Steel Bioreactor bioreactor Fermenter

Min Order: 1 piece

brand name: BAILUN bio Bioreactor and Fermenter Manufacturer

model: BL01

Nearest port for product export: Shanghai, Tianjin

Delivery clauses under the trade mode: FOB, CFR, CIF

Acceptable payment methods: T/T, L/C

update time: Thu, 05 Dec 2024 10:19:06 GMT

contact supplier

Paramtents

Type Fermentation Extraction
Marketing Type New Product 2024
Warranty of core components 1 Year

Packging & Delivery

Min Order1 piece

Briefing

200l Industrial Batch Fermentation Bioreactor For Microbiology

Detailed

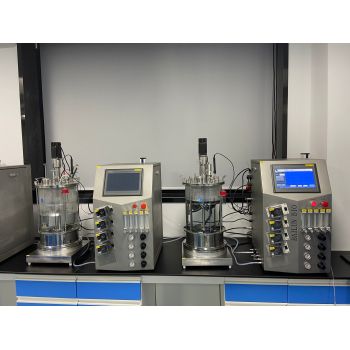

Parameter Description for mammallian cell fermenter glass fermenter lab fermenter

Total volume: 0.2L,0.5L,1L,2L,3L,5L,10L,20L,30L,40L etc.

Working volume: 50%~70%

Tank: Single glass vessel with stainless steel bottom. Lid made by stainless steel 316L with ports, condenser on the cover

Stirring system Mechanical drive(GJ type) or Magnetic drive(GC type, bottom/top drive), 3 six-blade paddle and 1 foam breaker, each paddle height adjustable.

Stir speed: 50~1000rpm/50-500rpm

Sterilization： Off-site sterilization (Autoclave)

Gas control： Control by rotor meter or mass flow meter (MFC) , air flow 1-2vvm, O2 flow:0.1-0.2vvm Co2 flow:0.1-0.2vvm .N2 flow:0.1-0.2vvm

Feeding： Automatically feeding by peristaltic pump

Anti-foam control： Automatically add antifoamer by peristaltic pump

Temperature control： Auto-control, electric heating range water source add 5ºC to 70ºC

PH control： PH 2.00-12.00±0.1, auto-control adding acid/base by peristaltic pump, pH sensor from Hamilton/Mettler, Switzerland.

DO control： 0-150±3% displaying precision 0.1%, DO sensor from Hamilton/Mettler, Switzerland. DO coupling with agitation, oxygen.

Sampling： Manual sampling

Control parameters： 10 or 15 inch touch screen , Siemens PLC with control parameters (stirring, pH, DO, temperature, feeding, alarm, gas etc.), data analysis, data record, data output, language(RU/EN/CN) and other customized functions

Optional configuration： Remote control, Mass flow meter(auto control gas), O2/N2/CO2, gas(CO2) exhaust analysis, Level sensor, Turbidity(OD) sensor, ORP sensor, weight system, Live cell sensor(Biomass), Printing, Siemens touch screen, etc.,

hyperforma bioreactor type:

Machine: infinite speed variation; rpm: 70~1200rpm±1%,the height of the stirring oar can be adjusted

Magnetic Drive from bottom, without mechanical seal

Our product range:

1, Glass fermenter from mini 0.2L to 40L,

2, Stainless steel fermenter for reasearch-pilot-industry like 2L-500L-5000L-500KL.

3, Relative device: Steam generator, Chiller, Air compressor, Tubular centrifuge, Disc centrifuge, Shaker,etc.

Fermenter/bioreactor application:

1, Animal vaccine production: Avian influenza vaccine, Porcine PRRS vaccine, Foot-and-mouth disease, Rabies vaccine, Mink vaccine, DTP vaccine, Diphtheria vaccine, Tetanus vaccine, etc.

2, Human vaccine production: Diphtheria vaccine, Diphtheria vaccine, Tetanus vaccine, Meningitis vaccine, Pneumonia IV vaccine, Hepatitis B vaccine, Coronavirus disease-19 vaccine, etc.

3, Culture for microorganism (bacterial,fungi,yeast.etc), mammalian cell(293,CHO etc.), plant cell, algae, enzyme, protein, additives, antibiotics etc.

Our Factory:

We have three bioreactor fermenter factories in China, one located in Shanghai, two located in Lianyungang city. Welcome to visiting.
