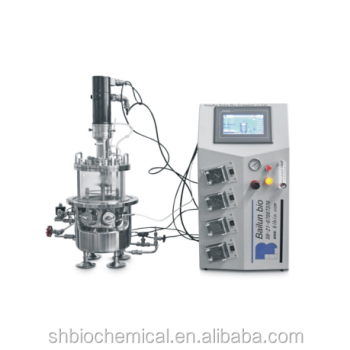

Sterilization with 30 gallon fermenter model which is suitable for microorganism Culture

group name: A Small Fermentation Tank Fermentation Equipment Stirred By A Biological Fermentation Tank

Min Order: 1 piece

brand name: BAILUN bio Bioreactor and Fermenter Manufacturer

model: BLBIO-GJAV

Nearest port for product export: Shanghai, Tianjin

Delivery clauses under the trade mode: FOB, CFR, CIF

Acceptable payment methods: T/T, L/C

update time: Thu, 05 Dec 2024 10:46:27 GMT

contact supplier

Paramtents

Weight 150KG
Warranty 1 Year
Machinery Capacity 0.2L to 400KL
Machinery Test Report Provided
Warranty of core components 1 year
Core Components Gearbox, Motor, Gear, Pump, Pressure vessel, PLC,
Key Selling Points Automatic
Marketing Type Hot Product 2023
Video outgoing-inspection Provided
Processing Fermenting Equipment

Packging & Delivery

Min Order1 piece

Briefing

Automatic Fermenter Bioreactor 100l Fermenter bacteria Bioreactor

Detailed

Parameter	Description
Total volume	5L,10L,15L,20L,30L,50L,100L,200L,500L,1000L, 5KL, 50KL, 500KL etc.
Working volume	30%~70%
Tank	Jacket tank, made by SS316 and SS304, tank design pressure 0.3Mpa, jacket design pressure 0.35Mpa, polishing 0.4-0.6um, ratio of diameter and height is 1:2.2-2.5

Stirring system	Mechanical drive on the top/bottom or Magnetic drive on the top, 3pcs height adjustable six-blade paddle Stir speed: 50~1000rpm/50-400rpm
Sterilization	Manually Sterilize in place(SIP), auto control by program is optional
Clean	Clean in place (CIP) by spray ball + CIP control valves and pipelines
Gas control	Control by rotor meter, air flow 1 vvm or O2 flow

Feeding	Automatically feeding by peristaltic pump
Anti-foam control	Automatically add antifoam by peristaltic pump
Temperature control	Auto-control, electric heating range: water source add 5ºC to 70ºC
PH control	PH 2.00-12.00±0.1, auto-control adding acid/base by peristaltic pump, pH sensor from Hamilton/Mettler, Switzerland.

Do control	0-150±3% displaying precision 0.1%, DO sensor from Hamilton/Mettler, Switzerland. DO coupling with agitation, oxygen.
Sampling	Sampling valve, can sterilization separately, manual
Harvest	Zero dead zone bottom valve, can sterilization separately, manual/auto
Lid lift system	30L-500L have lid lift system, 700-1000L have human hole.

Innoculation	4 valves group or pin in with flam protection
Pressure	Auto control, BD Germany pressure transmitter
Exhaust	Have condenser before exhaust, control by diagram valve / Proportional control valve.
Control parameters	10 or 15 inch touch screen , Siemens PLC with control parameters (stirring, pH, DO, temperature, feeding, alarm, gas etc.), data analysis, data record, data output, language(RU/EN/CN) and other customized functions
Optional configuration	Remote control, Mass flow meter(auto control gas), O2/N2/CO2, gas flow 2vvm, gas(CO2) exhaust analysis, Level sensor, Turbidity(OD) sensor, ORP sensor, Weight system, Live cell sensor(Biomass), Printing, Siemens touch screen, Double mechanical seal, 4-Valves-group for feeding, Bottom valve auto discharge, ASME certificate,Batch culture, Seed transfer, etc.

PRODUCT RANGE

1, 30 gallon fermenter from mini 0.2L to 40L,

2, Stainless steel fermenter for reasearch-pilot-industry like 2L-500L-5000L-500KL.

3, Relative device: Steam generator, Chiller, Air compressor, Tubular centrifuge, Disc centrifuge, Shaker,etc.

FERMENTER / BIOREACTOR APPLICATION :

1, Animal vaccine production: Avian influenza vaccine, Porcine PRRS vaccine, Foot-and-mouth disease, Rabies vaccine, Mink vaccine, DTP vaccine, Diphtheria vaccine, Tetanus vaccine, etc.

2, Human vaccine production: Diphtheria vaccine, Diphtheria vaccine, Tetanus vaccine, Meningitis vaccine, Pneumonia IV vaccine, Hepatitis B vaccine, etc.

3, Culture for microorganism (bacterial,fungi,yeast.etc), mammalian cell, plant cell, algae, enzyme, protein, additives, antibiotics etc.
