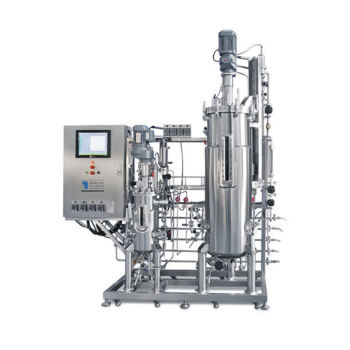

BLBIO Stainless Steel Laboratory Fermentor Yeast Fermentation Pot 200l bioreactor

group name: Small Scale Methanol Plant For Laboratory Multi Bioreactor Pressure Fermentation

Min Order: 1 piece

brand name: BAILUN bio Bioreactor and Fermenter Manufacturer

model: BLBIO-GJAV

Nearest port for product export: Shanghai, Tianjin

Delivery clauses under the trade mode: FOB, CFR, CIF

Acceptable payment methods: T/T, L/C

update time: Thu, 05 Dec 2024 10:18:27 GMT

contact supplier

Paramtents

Weight 200KG
Warranty 1 Year
Machinery Capacity 50~1000L
Machinery Test Report Provided
Warranty of core components 1 year
Core Components Gearbox, Motor, Gear, Pump, Pressure vessel, PLC,
Key Selling Points Automatic
Marketing Type New Product 2024
Video outgoing-inspection Provided
Processing Fermenting Equipment

Packging & Delivery

Min Order1 piece

Briefing

BLBIO Stainless Steel Laboratory Fermentor Yeast Fermentation Pot--BLBIO

Detailed

Parameter	Description
Total volume	10L,15L,20L,30L,50L,70L,100L,200L,300L,500Letc.
Working volume	30%~70%
Tank	Diameter:Hight ratio 1:2 to 3, Tank made by SUS316L stainless steel. Jacket is SUS304 stainless steel.

Stirring system	Mechanical drive on the top/bottom or Magnetic drive on the top, 3pcs height adjustable six-blade paddle Stir speed: 50~1000rpm/50-400rpm
Sterilization	Sterilize in place(SIP), auto control by program
Clean	Clean in place (CIP) by spray ball
Gas control	Control by rotor meter, air flow 1 vvm

Feeding	Automatically feeding by peristaltic pump
Anti-foam control	Automatically add antifoam by peristaltic pump
Temperature control	Auto-control, electric heating range: water source add 5℃ to 70℃
PH control	PH 2.00-12.00±0.1, auto-control adding acid/base by peristaltic pump, pH sensor from Hamilton/Mettler, Switzerland.

Do control	0-150±3% displaying precision 0.1%, DO sensor from Hamilton/Mettler, Switzerland. DO coupling with agitation, oxygen.
Sampling	Sampling valve, can sterilization separately, manual
Harvest	Zero dead zone bottom valve(Gemu/Burket,Germany), can sterilization separately, manual/auto
Lid lift system	30L-500L have lid lift system, 700-1000L have human hole.

Innoculation	4 valves group or pin in with flam protection
Pressure	Auto control, BD Germany pressure transmitter or Lambert differential pressure liquid level gauge.
Exhaust	Have condenser before exhaust, control by diagram valve / Proportional control valve.
Control parameters	10in touch screen, Siemens PLC control system with control parameters (stirring, pH, DO, temperature, feeding, gas etc.), data analysis, data logging, data output and printing, overrun alarm, language switching and other functions
Optional configuration	O2/N2/CO2 gas control, Level sensor, OD sensor, Turbidity sensor, ORP sensor, Weight system, Live cell sensor etc.

PRODUCT RANGE

1, 200l bioreactor from mini 0.2L to 40L,

2, Stainless steel fermenter for reasearch-pilot-industry like 2L-500L-5000L-500KL.

3, Relative device: Steam generator, Chiller, Air compressor, Tubular centrifuge, Disc centrifuge, Shaker,etc.

FERMENTER / BIOREACTOR APPLICATION :

1, Animal vaccine production: Avian influenza vaccine, Porcine PRRS vaccine, Foot-and-mouth disease, Rabies vaccine, Mink vaccine, DTP vaccine, Diphtheria vaccine, Tetanus vaccine, etc.

2, Human vaccine production: Diphtheria vaccine, Diphtheria vaccine, Tetanus vaccine, Meningitis vaccine, Pneumonia IV vaccine, Hepatitis B vaccine, etc.

3, Culture for microorganism (bacterial,fungi,yeast.etc), mammalian cell, plant cell, algae, enzyme, protein, additives, antibiotics etc.
