BLBIO-SCUC Bioreactor Fermenter For Microbial Cell Culture manufacturing in animal

group name: Mammalian Cell Bioreactor 200l Bioreactor Stainless Steel Bioreactor bioreactor Fermenter

Min Order: 1 piece

brand name: BAILUN bio Bioreactor and Fermenter Manufacturer

model: BLBIO-SCUC

Nearest port for product export: Shanghai, Tianjin

Delivery clauses under the trade mode: FOB, CFR, CIF

Acceptable payment methods: T/T, L/C

update time: Thu, 21 Nov 2024 16:59:41 GMT

contact supplier

Paramtents

Applicable Industries Manufacturing Plant, Vaccine
Place of Origin Shanghai, China
Weight 200 KG
Machinery Capacity 50L, 700L, 2500L, 50000L
Machinery Test Report Provided
Warranty of core components 1 Year
Key Selling Points Automatic
Marketing Type Hot Product 2024
Processing Fermenting Equipment
Brand Name SHBC
Processing Types bacterial yeast cell culture
Voltage 220V/380V
Power 15-70Kw Depends
Function Culture bacterial yeast cell
Feeding volume 70%

Packging & Delivery

Min Order1 piece

Briefing

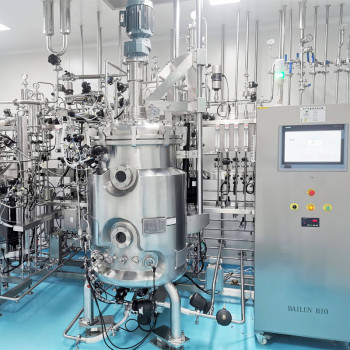

200 liter stainless steel fermenter manufacturing fermenter bioreactor with perfusion system

Detailed

Parameter	Description
Total volume	5L,10L,15L,20L,30L,50L,100L,200L,500L,1000L, 5KL, 50KL, 500KL etc.
Working volume	30%~70%
Tank	Jacket tank, made by SS316 and SS304, tank design pressure 0.3Mpa, jacket design pressure 0.35Mpa, polishing 0.4-0.6um, ratio of diameter and height is 1:2.2-2.5

Stirring system	Mechanical drive on the top/bottom or Magnetic drive on the top, 3pcs height adjustable six-blade paddle Stir speed: 50~1000rpm/50-400rpm
Sterilization	Manually Sterilize in place(SIP), auto control by program is optional
Clean	Clean in place (CIP) by spray ball + CIP control valves and pipelines
Gas control	Control by rotor meter, air flow 1 vvm or O2 flow

Feeding	Automatically feeding by peristaltic pump
Anti-foam control	Automatically add antifoam by peristaltic pump
Temperature control	Auto-control, electric heating range: water source add 5ºC to 70ºC
PH control	PH 2.00-12.00±0.1, auto-control adding acid/base by peristaltic pump, pH sensor from Hamilton/Mettler, Switzerland.

Do control	0-150±3% displaying precision 0.1%, DO sensor from Hamilton/Mettler, Switzerland. DO coupling with agitation, oxygen.
Sampling	Sampling valve, can sterilization separately, manual
Harvest	Zero dead zone bottom valve, can sterilization separately, manual/auto
Lid lift system	30L-500L have lid lift system, 700-1000L have human hole.

Innoculation	4 valves group or pin in with flam protection
Pressure	Auto control, BD Germany pressure transmitter
Exhaust	Have condenser before exhaust, control by diagram valve / Proportional control valve.
Control parameters	10 or 15 inch touch screen , Siemens PLC with control parameters (stirring, pH, DO, temperature, feeding, alarm, gas etc.), data analysis, data record, data output, language(RU/EN/CN) and other customized functions
Optional configuration	Remote control, Mass flow meter(auto control gas), O2/N2/CO2, gas flow 2vvm, gas(CO2) exhaust analysis, Level sensor, Turbidity(OD) sensor, ORP sensor, Weight system, Live cell sensor(Biomass), Printing, Siemens touch screen, Double mechanical seal, 4-Valves-group for feeding, Bottom valve auto discharge, ASME certificate,Batch culture, Seed transfer, etc.

Bioreactor Fermenter For Microbial Cell Culture

PRODUCT RANGE

1, Glass fermenter from mini 0.2L to 40L,

2, Stainless steel fermenter for reasearch-pilot-industry like 2L-500L-5000L-500KL.

3, Relative device: Steam generator, Chiller, Air compressor, Tubular centrifuge, Disc centrifuge, Shaker,etc.

4,Bioreactor Fermenter For Microbial Cell Culture

FERMENTER / BIOREACTOR APPLICATION :

1, Animal vaccine production: Avian influenza vaccine, Porcine PRRS vaccine, Foot-and-mouth disease, Rabies vaccine, Mink vaccine, DTP vaccine, Diphtheria vaccine, Tetanus vaccine, etc.

2, Human vaccine production: Diphtheria vaccine, Diphtheria vaccine, Tetanus vaccine, Meningitis vaccine, Pneumonia IV vaccine, Hepatitis B vaccine, etc.

3, Culture for microorganism (bacterial,fungi,yeast.etc), mammalian cell, plant cell, algae, enzyme, protein, additives, antibiotics etc.
