BLBIO Industrial Stainless Steel Fermentation Tank bioreactor for sale

group name: Stainless Steel Parallel Bioreactor Fermentation Bioreactor

Min Order: 1 piece

brand name: BAILUN bio Bioreactor and Fermenter Manufacturer

model: BLBIO-GJAV

Nearest port for product export: Shanghai, Tianjin

Delivery clauses under the trade mode: FOB, CFR, CIF

Acceptable payment methods: T/T, L/C

update time: Thu, 05 Dec 2024 03:30:09 GMT

contact supplier

Paramtents

Weight 400KG
Warranty 1 Year
Machinery Capacity 50L~50000L
Machinery Test Report Provided
Warranty of core components 1 year
Core Components Gearbox, Motor, Gear, Pump, Pressure vessel, PLC,
Key Selling Points Automatic
Marketing Type New Product 2024
Video outgoing-inspection Provided
Processing Fermenting Equipment

Packging & Delivery

Min Order1 piece

Briefing

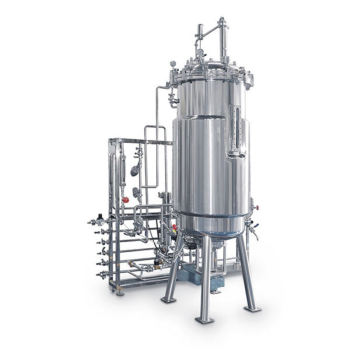

BLBIO Industrial Stainless Steel Fermentation Tank--BLBIO

Detailed

Parameter	Description
Total volume	10L,15L,20L,30L,50L,70L,100L,200L,300L,500Letc.
Working volume	30%~70%
Tank	Diameter: Hight ratio 1:2to3, Tank made by SUS316L stainless steel. Jacket is SUS304 stainless steel.

Stirring system	Mechanical sealing system : high-powered stirring oar, anti-foam oar; AC electrical machine: infinite speed variation; rpm in the fermenter: 50~1000 rpm±1%,The height of the stirring oar can be adjusted
Sterilization	Sterilize in place(SIP), auto control by program
Clean	Clean in place (CIP) by spray ball
Gas control	Control by rotor meter, air flow 1 vvm

Feeding	Automatically feeding by peristaltic pump
Anti-foam control	Automatically add antifoam by peristaltic pump
Temperature control	Heat by thermostatic water tank and circulate by circulating pump(Grundfos, Denmark), auto control (cooling water+5℃) to 65℃±0.1℃,temperature probe(PT100)
PH control	2.00-12.00±0.02 pH, autocontrol by adding acid and base, pH sensor (Mettler/Hamilton, Switzerland) and shielding lead (Mettler/Hamilton, Switzerland). fermenter is auto controlled with peristaltic pump

Do control	0-150±3% displaying precision 0.1%, sensor (Mettler/Hamilton, Switzerland) and shielding lead(Mettler/Hamilton, Switzerland)
Sampling	Sampling valve, can sterilization separately, manual
Harvest	Zero dead zone bottom valve(Gemu/Burket,Germany), can sterilization separately, manual/auto
Lid lift system	30L-500L have lid lift system, 700-1000L have human hole.

Innoculation	4 valves group or pin in with flam protection
Pressure	Auto control, BD Germany pressure transmitter or Lambert differential pressure liquid level gauge.
Exhaust	Have condenser before exhaust, control by diagram valve / Proportional control valve.
Control parameters	10in touch screen, Siemens PLC control system with control parameters (stirring, pH, DO, temperature, feeding, gas etc.), data analysis, data logging, data output and printing, overrun alarm, language switching and other functions
Optional configuration	O2/N2/CO2 gas control, Level sensor, OD sensor, Turbidity sensor, ORP sensor, Weight system, Live cell sensor etc.

PRODUCT RANGE

1, Industrial Fermentation from mini 0.2L to 40L,

2, Stainless steel fermenter for reasearch-pilot-industry like 2L-500L-5000L-500KL.

3, Relative device: Steam generator, Chiller, Air compressor, Tubular centrifuge, Disc centrifuge, Shaker,etc.

FERMENTER / BIOREACTOR APPLICATION :

1, Animal vaccine production: Avian influenza vaccine, Porcine PRRS vaccine, Foot-and-mouth disease, Rabies vaccine, Mink vaccine, DTP vaccine, Diphtheria vaccine, Tetanus vaccine, etc.

2, Human vaccine production: Diphtheria vaccine, Diphtheria vaccine, Tetanus vaccine, Meningitis vaccine, Pneumonia IV vaccine, Hepatitis B vaccine, etc.

3, Culture for microorganism (bacterial,fungi,yeast.etc), mammalian cell, plant cell, algae, enzyme, protein, additives, antibiotics etc.
