Applications
l Suspension cultures of microorganisms and cells
l Developing and optimizing of cell culture process
l Seed amplification
l Mass production

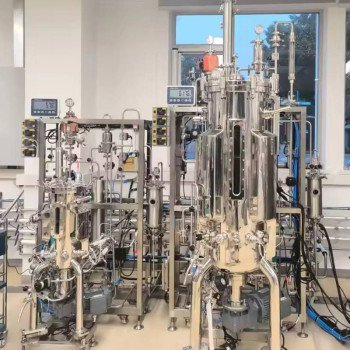

10000l bioreactor
Features
l The culture volume is 5~5000L.
l By modular design, provide various functions from general to comprehensive.
l By advanced pressure vessel manufacture process and functions, it meets most requirements of today' s bio-pharmaceuticals.
l This system provides thorough solution for different kinds of budgets and requirements.
Control system
l With mature, stable, universal Siemens PLC control system to realize automatic control.
l 10″ touch screen, friendly human-computer interaction.
l The design structure and selection enhance the reliability of the system. It will not be affected by the virus or the Windows operating system.
l All the control aspects adopt intelligent PID control, control stability, high control precision, and have the parameter self-tuning control algorithm.
l With the functions of real-time display, data record, data analysis, graph and batch report, output print, password management and overlimit alarm, etc.
Volume | 5~5000L (optional) |
Load rate | 30%~70% |
Contact material | SUS 316L stainless steel |
Gassing | Four air intakes |
Gas control | Standard: rotor flowmeter (manual) Optional: mass flowmeter (automatic) |
Sterilization | In-situ sterilization (steam source external) |
Basic control | Temperature, rotating speed, pH, DO, pressure, feeds |
Peristaltic pump | Standard 4 pcs |
Stirring mode | Mechanical stirring / magnetic stirring |
