Applications
l Culture medium selection
l Optimization of fermentation process parameters
l Production process validation
l Strain validation
Features
l 15″ touch screen, easy to understand and use.
l Control 2~6 stainless steel vessels at the same time by one controller.
l The volume is 5~1000L, which can be customized freely.
l Each vessel is connected with separate sensor and 4 peristaltic pumps to achieve individual control.
l Single vessel can be used independently.

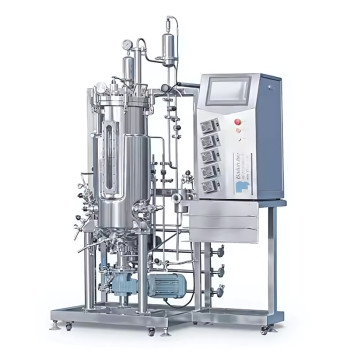

ss fermenter
Control System
l With mature, stable, universal Siemens PLC control system to realize automatic control.
l With the functions of real-time display, data recording, data analysis, output printing, password management, abnormal analysis, overlimit alarm, etc.
l With USB interface, and data can be copied directly by USB.
l Running modes:
Manual control: You can open valve or set the percentage of valve opening.
Automatic control: You can select continuous or PID control the switch.
Sequence control: The control of all parameters can be pre-set at least 10 control sections.
Automatic segmentation remotely control: PC control.
Related control: Rotating speed & dissolved oxygen, gasing & dissolved oxygen, feeding & pH, etc.
